Spraytec system for spray characterisation
The Malvern Spraytec system is specifically designed for spray characterisation. It provides real-time size distribution of spray droplets and aerosols.
The Spraytec uses the technique of laser diffraction. A laser beam passes through the spray which scatters the light creating a scattering pattern. The optics measure the angles and intensity of the scattered light and this is used to calculate the droplet size distribution.

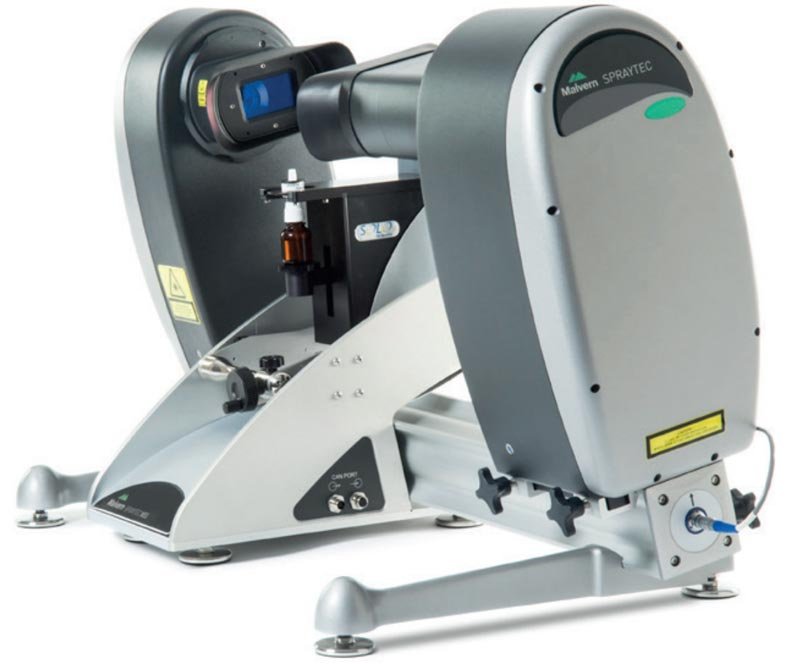

The Spraytec system is made up of a laser module, a detector module and an optical bench to mount and align the laser and detector modules.
The Spraytec software controls the measurement process and analyses the light scattering data to calculate spray size distributions.The results are displayed as a ‘size history’ trend plot showing droplet size changes over time. Measuring parameters can be incorporated into Standard Operating Procedures (SOPs).
Spraytec features and benefits
Accurate spray Sizing: over a dynamic range of 0.1 – 2000 microns using just two lens systems.
Rapid Measurements: one measurement every 100 microseconds (10kHz) fully captures transient changes in both pulsed and continuous sprays.
High Concentration: patented multiple scattering correction ensures spray measurements can be made even at high concentrations.
Reproducible simple operation: Measuring parameters can be incorporated into Standard Operating Procedures (SOPs). Prompts ensure correct sample preparation, handling and analysis settings to deliver reliable results.
Regulatory compliance: The software provides technical compliance to the requirements of 21 CFR Part 11 and ISO 13320:2009, the international standard for laser diffraction measurements.
For more information, including how the Spraytec system works, what accessories are available and all specifications, visit Malvern’s website.
Contact us for a quote or to learn more about how your company can benefit from using the Spraytec system for spray particle size analysis.
